TRANSMISSION (1)

TRANSMISSION (2) FOR SUZUKI KINGQUAD 400 2024

GEAR SHIFTING ASSY (1)

IDLE GEAR
GEAR, SUB T/M IDLE

29150-27H00-000 2915027H00000

£110,08

Unit Price Incl. Tax

BEARING LT-F400F
BEARING, 17X22X15.8(17X22X15.8)

09263-17045-000 0926317045000

£10,66

Unit Price Incl. Tax

GEAR SUB T/M DRIVE NO.1
GEAR, SUB T/M DRIVE NO.1(NT:27)

29211-38F80-000 2921138F80000

£116,66

Unit Price Incl. Tax

BUSH SUB DRIVE NO.1
BUSH, SUB T/M DRIVE NO.1 GEAR

29215-38F80-000 2921538F80000

£27,53

Unit Price Incl. Tax

BEARING SUB T/M DRIVE NO.1
BEARING, 30X35X16(30X35X16)

09263-30056-000 0926330056000

£27,11

Unit Price Incl. Tax

GEAR SUB T/M DRIVE NO.2
GEAR, SUB T/M DRIVE NO.2(NT:21)

29220-38F50-000 2922038F50000

£84,22

Unit Price Incl. Tax

DOG SUB T/M SLIDING
DOG, SUB T/M SELECT SLIDING

29231-38F80-000 2923138F80000

£73,33

Unit Price Incl. Tax

WASHER LOCK
WASHER(25.1X40X1.5)

09167-25017-000 0916725017000

£4,16

Unit Price Incl. Tax

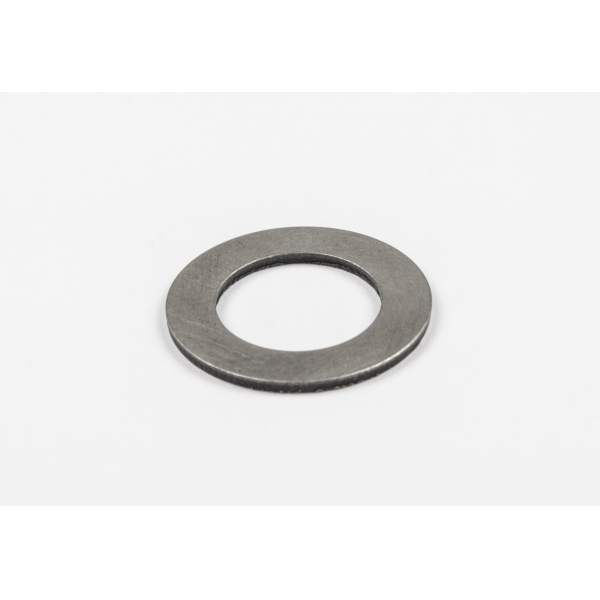

THRUST WASHER
WASHER

08211-17282-000 0821117282000

£3,64

Unit Price Incl. Tax

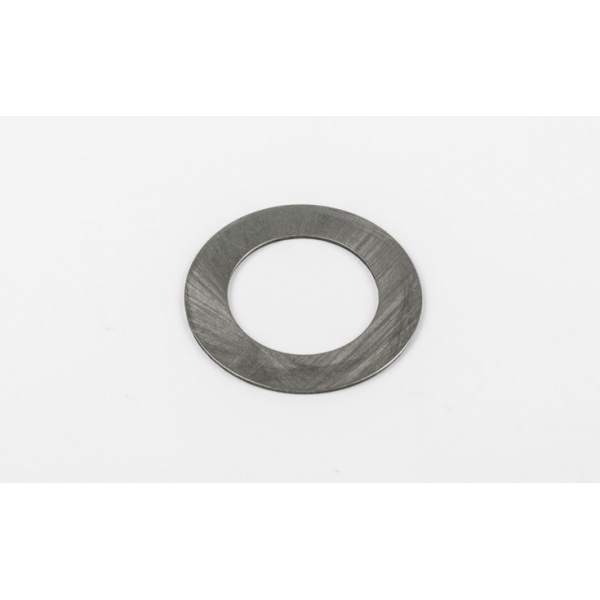

SHIM T 1.0
SHIM(25X40X1)

09181-25251-000 0918125251000

£4,99

Unit Price Incl. Tax

WASHER
SHIM(15X26X1)

09181-15195-000 0918115195000

£4,16

Unit Price Incl. Tax

BALL BEARING
BEARING

09262-15062-000 0926215062000

£19,19

Unit Price Incl. Tax

BEARING
BEARING(20X47X14)

09262-20139-000 0926220139000

£51,37

Unit Price Incl. Tax

SNAP RING
RING, SNAP

09380-25003-000 0938025003000

£4,56

Unit Price Incl. Tax

SHIM

08211-20301-000

09181-20195-000

£2,09

Unit Price Incl. Tax

BEARING MIDDLE (25X52X14)
BEARING, 25X52X14(25X52X14)

09262-25124-000 0926225124000

£53,40

Unit Price Incl. Tax

SHAFT, SUB T/M OUTP LT-F400F/L0
SHAFT, SUB T/M OUTPUT

29121-38F60-000 2912138F60000

£116,36

Unit Price Incl. Tax

GEAR, SUB T/M DRIVE LT-F400F/L0
GEAR, SUB T/M DRIVEN(NT:35)

29311-38F60-000 2931138F60000

£110,51

Unit Price Incl. Tax

BALL BEARING
BEARING(35X72X17)

09262-35038-000 0926235038000

£55,92

Unit Price Incl. Tax

BEARING(25X52X13)

09262-25136-000 0926225136000

£47,32

Unit Price Incl. Tax

OIL SEAL
SEAL, OIL(25X45X5)

09283-25076-000 0928325076000

£12,02

Unit Price Incl. Tax

BEARING RETAINER
RETAINER

24741-21A00-000 2474121A00000

Not available

BOLT
SCREW(6X12)

09125-06122-000 0912506122000

£2,89

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the TRANSMISSION (2) of your Suzuki KINGQUAD 400 of KINGQUAD. Let us know if you have any questions.
