TAIL LIGHT (E39)

WIRING HARNESS FOR SUZUKI DR 500 1984

RIGHT SWITCH - HANDGRIP

(1) 36610-37410-000

WIRING HARNESS NO.1

(1) 36610-37420-000

WIRING HARNESS NO.1

(2) 36620-37410-000

WIRING HANRESS NO.2

(3) 09407-18302-000

CLAMP
CLAMP, CARBURETOR AIR VENT

(4) 09407-12402-000

CLAMP

(5) 09403-09328-000

CLAMP

(6) 36853-37220-000

LEAD WIRE, DC LIGHTING

(6) 36853-37230-000

LEAD WIRE, DC LIGHTING

(6) 36853-37240-000

36853-37240-000
LEAD WIRE, AC LIGHTING

(6) 36853-37280-000

LEAD WIRE, DC LIGHTING

(6) 36853-37290-000

LEAD WIRE, AC LIGHTING

(7) 32800-16A00-000

RECTIFIER WIRE
RECTIFIRE ASSY
RECTIFIER ASSY

(7) 32880-19X50-000

RECTIFIER WIRE
RECTIFIRE ASSY

(8) 09125-05043-000

REORDER BRAN BARDSLEY
SCREW

(9) 36740-15011-000

FUSE CASE ASSY
CASE ASSY, FUSE

(10) 09481-13001-000

FUSE (15A)

(11) 37110-48501-000

SWITCH ASSY, IGNITION

(11) 37110-48512-000

IGNITION SWITCH ASSY
SWITCH ASSY, IGNITION

(11) 37110-48521-000

37110-48521-000
SWITCH ASSY, IGNITION

(12) 37145-19710-000

KEY BLANK

(13) 37830-38200-000

ENGINE STOP SWITCH
DISCONTINUED

(14) 37740-48071-000

BRAKE LAMP SWITCH
SWITCH ASSY, STOP LAMP

(15) 09443-06016-000

SPRING

(16) 38500-37284-000

HORN ASSY

(17) 01500-06127-000

BOLT
BOLT, FRONT

(18) 09408-00020-000

CLAMP
CLIP

	Part number	Description	Qty
# 1	36610-37410-000 3661037410000 3661037410000	WIRING HARNESS NO.1	Not available	£0,00
# 1	36610-37420-000 3661037420000 3661037420000	WIRING HARNESS NO.1	Not available	£0,00
# 2	36620-37410-000 3662037410000 3662037410000	WIRING HANRESS NO.2	Not available	£0,00
# 3	09407-11301-000 09407-18302-000 0940711301000	CLAMP CLAMP, CARBURETOR AIR VENT	£3,32
# 4	09407-12402-000 0940712402000 0940712402000	CLAMP	£4,03
# 5	09403-09307-000 09403-09328-000 0940309307000	CLAMP	£2,16
# 6	36853-37220-000 3685337220000 3685337220000	LEAD WIRE, DC LIGHTING	Not available	£0,00
# 6	36853-37230-000 3685337230000 3685337230000	LEAD WIRE, DC LIGHTING	Not available	£0,00
# 6	36853-37240-000 3685337240000 3685337240000	36853-37240-000 LEAD WIRE, AC LIGHTING	Not available	£0,00
# 6	36853-37280-000 3685337280000 3685337280000	LEAD WIRE, DC LIGHTING	Not available	£0,00
# 6	36853-37290-000 3685337290000 3685337290000	LEAD WIRE, AC LIGHTING	Not available	£0,00
# 7	32800-19063-000 32800-16A00-000 3280019063000	RECTIFIER WIRE RECTIFIRE ASSY RECTIFIER ASSY	£37,73
# 7	32800-19063-000 32880-19X50-000 3280019063000	RECTIFIER WIRE RECTIFIRE ASSY	£16,80
# 8	09125-05043-000 0912505043000 0912505043000	REORDER BRAN BARDSLEY SCREW	Not available	£0,00

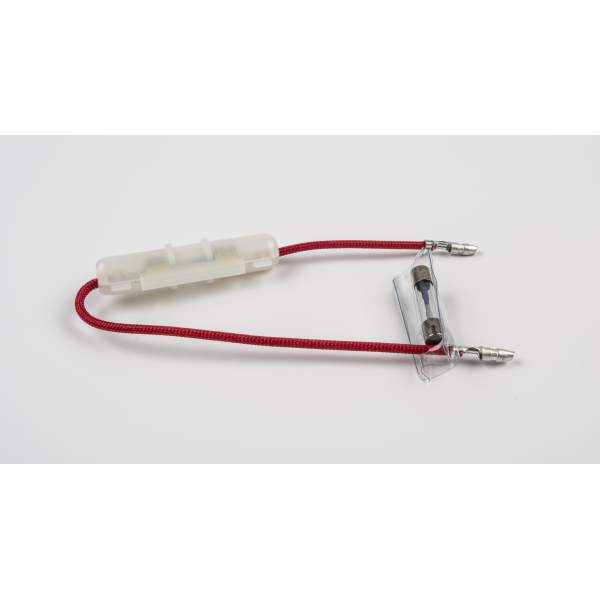

# 9	36740-15011-000 3674015011000 3674015011000	FUSE CASE ASSY CASE ASSY, FUSE	£17,29
# 10	09481-13001-000 0948113001000 0948113001000	FUSE (15A)	Not available	£0,00
# 11	37110-48501-000 3711048501000 3711048501000	SWITCH ASSY, IGNITION	£144,54
# 11	37110-48511-000 3711048511000	IGNITION SWITCH ASSY SWITCH ASSY, IGNITION	Not available	£0,00
# 11	37110-48521-000 3711048521000 3711048521000	37110-48521-000 SWITCH ASSY, IGNITION	Not available	£0,00
# 12	37145-19710-000 3714519710000 3714519710000	KEY BLANK	£7,61
# 13	37830-37410-000 3783037410000	ENGINE STOP SWITCH DISCONTINUED	Not available	£0,00
# 14	37740-48071-000 3774048071000 3774048071000	BRAKE LAMP SWITCH SWITCH ASSY, STOP LAMP	£46,85
# 15	09443-06016-000 0944306016000 0944306016000	SPRING	£4,66
# 16	38500-37284-000 3850037284000 3850037284000	HORN ASSY	Not available	£0,00
# 17	01107-06128-000 01500-06127-000 0110706128000	BOLT BOLT, FRONT	£2,59
# 18	09408-00020-000 0940800020000 0940800020000	CLAMP CLIP	£2,35

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of DR. Let us know if you have any questions.
