TAIL LIGHT

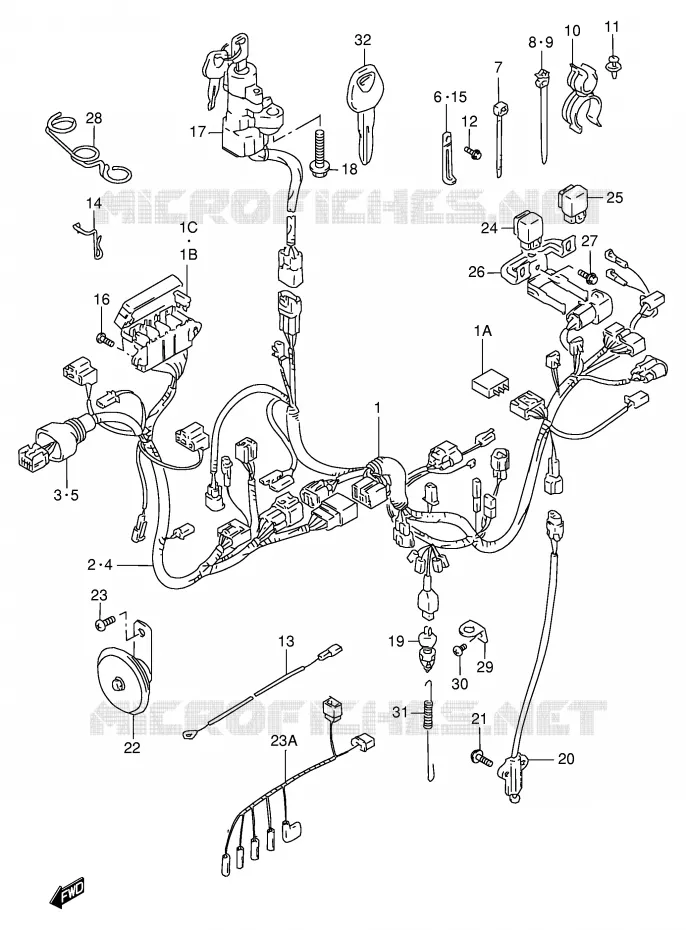

WIRING HARNESS (MODEL T / V) FOR SUZUKI GSX-R 750 1998

WIRING HARNESS (MODEL W / X)

(1) 36610-33E00-000

WIRING HARNESS
HARNESS, WIRING NO.1

(1A) 36611-38A10-000

DIODE

(1B) 09481-10101-000

FUSE
FUSE (10A)

(1C) 09481-15101-000

FUSE (15A)

(2) 36620-33E10-000

WIRING HARNESS N0.2
HARNESS, WIRING NO.2

(3) 36618-33E00-000

SPEEDO. COUPLER COVER
COVER, SPEEDOMETER

(4) 36620-33E20-000

HARNESS, WIRING NO.2

(5) 36618-33E00-000

SPEEDO. COUPLER COVER
COVER, SPEEDOMETER

(6) 09404-06039-000

CLAMP L:65
CLAMP (L:80)

(7) 09407-25401-000

CLAMP
CLAMP (L:235)

(7) 09407-14403-000

CLAMP

(8) 09407-17402-000

CLAMP WATER HOSE
CLAMP (L:135)

(9) 09407-18402-000

CLAMP
CLAMP (L:165)

(10) 09408-00055-000

SUZUKI PART
CLAMP

(11) 09409-07305-5PK

CLIP BLACK
CLIP, WIRING HARNESS

(12) 01550-0610B-000

BOLT
BOLT, WIRING HARNESS

(13) 36851-17E10-000

OIL SWITCH LEAD WIRE
WIRE, OIL PRESSURE SW

(14) 36745-33E00-000

FUSE-BOX STOPPER
STOPPER, FUSE BOX

(15) 09404-06036-000

CLAMP (L 95)
CLAMP (L:95)

(16) 02142-0620B-000

SCREW
SCREW, FUSE BOX

(17) 37100-33E01-000

STEERING LOCK ASSY
LOCK ASSY, STEERING

(17) 37100-33E11-000

LOCK ASSY STEERING (NON/UK)
LOCK ASSY, STEERING

(18) 09139-08016-000

BOLT
SCREW, STEERING LOCK (8X20)

(19) 37740-24A00-000

BRAKE LAMP SWITCH
SWITCH ASSY, STOP LAMP

(20) 37840-26X51-000

SWITCH ASSY, SIDE STAND

(21) 09103-06286-000

BOLT CLUTCH OPR CYLINDER
BOLT, SIDE SW (6X20)

(22) 38500-20E10-000

HORN ASSY

(23) 09125-08003-000

SCREW
SCREW (8X14)

(23A) 36856-33E10-000

CARB HEATER LEAD WIRE
WIRE, CARBURETOR HEATER

(24) 38740-24X50-000

RELAY
RELAY ASSY, FUEL PUMP

(25) 38740-24X50-000

RELAY
RELAY ASSY, SIDE STAND

(26) 38930-33E00-000

SIDE STAND RELAY BRACKET
BRACKET, SIDE STAND

(27) 01550-0612B-000

SCREW AIR CLEANER
BOLT, SIDE STAND

(28) 36619-33E00-000

WIRING HARNESS GUIDE
GUIDE, WIRING HARNESS

(29) 43251-21E00-000

REORDER ROBINSONS
BRACKET, STOP LAMP SW

(30) 02142-0608A-000

SCREW

(31) 09443-06005-000

SPRING
SPRING, STOP LAMP SW

(32) 37146-33E00-000

KEY, BLANK

	Part number	Description	Qty
# 1A	36611-38A00-000 36611-38A10-000 3661138A00000	DIODE	£26,92
# 1B	09481-10101-000 0948110101000 0948110101000	FUSE FUSE (10A)	£1,80
# 1C	09481-15101-000 0948115101000 0948115101000	FUSE (15A)	£2,69
# 1	36610-33E00-000 3661033E00000 3661033E00000	WIRING HARNESS HARNESS, WIRING NO.1	Not available	£0,00
# 2	36620-33E10-000 3662033E10000 3662033E10000	WIRING HARNESS N0.2 HARNESS, WIRING NO.2	Not available	£0,00
# 3	36618-33E00-000 3661833E00000 3661833E00000	SPEEDO. COUPLER COVER COVER, SPEEDOMETER	£11,89
# 4	36620-33E20-000 3662033E20000 3662033E20000	HARNESS, WIRING NO.2	Not available	£0,00
# 5	36618-33E00-000 3661833E00000 3661833E00000	SPEEDO. COUPLER COVER COVER, SPEEDOMETER	£11,89
# 6	09404-06432-000 09404-06039-000 0940406432000	CLAMP L:65 CLAMP (L:80)	£1,94
# 7	09407-14403-000 0940714403000 0940714403000	CLAMP	£2,84
# 7	09407-25401-000 0940725401000 0940725401000	CLAMP CLAMP (L:235)	£3,23
# 8	09407-17401-000 09407-17402-000 0940717401000	CLAMP WATER HOSE CLAMP (L:135)	£5,51
# 9	09407-18402-000 0940718402000 0940718402000	CLAMP CLAMP (L:165)	£1,79
# 10	09408-00055-000 0940800055000 0940800055000	SUZUKI PART CLAMP	Not available	£0,00
# 11	09409-07305-5PK 09409073055PK 09409073055PK	CLIP BLACK CLIP, WIRING HARNESS	£1,69
# 12	01550-06103-000 01550-0610B-000 0155006103000	BOLT BOLT, WIRING HARNESS	£2,81
# 13	36851-17E10-000 3685117E10000 3685117E10000	OIL SWITCH LEAD WIRE WIRE, OIL PRESSURE SW	£22,99
# 14	36745-33E00-000 3674533E00000 3674533E00000	FUSE-BOX STOPPER STOPPER, FUSE BOX	Not available	£0,00
# 15	09404-06434-000 09404-06036-000 0940406434000	CLAMP (L 95) CLAMP (L:95)	£1,99
# 16	02142-06203-000 02142-0620B-000 0214206203000	SCREW SCREW, FUSE BOX	£2,21
# 17	37100-33E01-000 3710033E01000 3710033E01000	STEERING LOCK ASSY LOCK ASSY, STEERING	Not available	£0,00
# 17	37100-33E11-000 3710033E11000 3710033E11000	LOCK ASSY STEERING (NON/UK) LOCK ASSY, STEERING	Not available	£0,00
# 18	09139-08016-000 0913908016000 0913908016000	BOLT SCREW, STEERING LOCK (8X20)	£5,39
# 19	37740-24A00-000 3774024A00000 3774024A00000	BRAKE LAMP SWITCH SWITCH ASSY, STOP LAMP	Not available	£0,00
# 20	37840-26X50-000 37840-26X51-000 3784026X50000	SWITCH ASSY, SIDE STAND	£92,27
# 21	09103-06130-000 09103-06286-000 0910306130000	BOLT CLUTCH OPR CYLINDER BOLT, SIDE SW (6X20)	£2,81
# 22	38500-20E10-000 3850020E10000 3850020E10000	HORN ASSY	Not available	£0,00
# 23	09125-08003-000 0912508003000 0912508003000	SCREW SCREW (8X14)	£2,40
# 23A	36856-33E10-000 3685633E10000 3685633E10000	CARB HEATER LEAD WIRE WIRE, CARBURETOR HEATER	Not available	£0,00
# 24	38740-24X50-000 3874024X50000 3874024X50000	RELAY RELAY ASSY, FUEL PUMP	£27,44
# 25	38740-24X50-000 3874024X50000 3874024X50000	RELAY RELAY ASSY, SIDE STAND	£27,44
# 26	38930-33E00-000 3893033E00000 3893033E00000	SIDE STAND RELAY BRACKET BRACKET, SIDE STAND	Not available	£0,00
# 27	01550-06123-000 01550-0612B-000 0155006123000	SCREW AIR CLEANER BOLT, SIDE STAND	£3,22
# 28	36619-33E00-000 3661933E00000 3661933E00000	WIRING HARNESS GUIDE GUIDE, WIRING HARNESS	Not available	£0,00
# 29	43251-21E00-000 4325121E00000 4325121E00000	REORDER ROBINSONS BRACKET, STOP LAMP SW	£9,25
# 30	02142-06083-000 02142-0608A-000 0214206083000	SCREW	£1,68
# 31	09443-06005-000 0944306005000 0944306005000	SPRING SPRING, STOP LAMP SW	£5,05
# 32	37146-33E00-000 3714633E00000 3714633E00000	KEY, BLANK	£10,68
