SWINGARM

SHOCK ABSORBER LINKAGE (MODEL T) FOR SUZUKI GSX-R 750 1998

SHOCK ABSORBER LINKAGE (MODEL V) REFER TO FIG.57B(L-6) FOR MODEL W/X

(1) 62600-33892-000

LEVER SET,RR CUSHION
LEVER SET, REAR CUSHION

(2) 09263-20121-000

ROLLER BEARING
BEARING, FRONT (20X27X30)

(3) 09263-17058-000

BEARING
BEARING, CENTER (17X24X20)

(3) 09263-17058-000

BEARING
BEARING, CENTER (17X24X20)

(3) 09263-17058-000

BEARING
BEARING, CENTER (17X24X20)
BEARING

(3) 09263-17058-000

BEARING
BEARING, CENTER (17X24X20)
BEARING

(4) 09263-17057-000

ROLLER BEARING
BEARING, REAR (17X24X26)

(5) 62684-12C00-000

SPACER
SPACER, FRONT

(6) 08211-12301-000

THRUST WASHER
WASHER

(6) 08211-12301-000

THRUST WASHER
WASHER

(7) 62658-33E00-000

FRONT BOLT
BOLT, FRONT

(8) 08319-3112A-000

NUT

(9) 62626-33D00-000

CENTRE SPACER
SPACER, CENTER

(10) 62621-33D00-000

CENTRE BOLT
BOLT, CENTER

(11) 08319-3112A-000

NUT

(12) 62684-40A10-000

SPACER
SPACER, REAR

(13) 62641-33E00-000

REAR CUSHION LEVER ROD
ROD, REAR CUSHION LEVER

(13) 62641-33E00-000

REAR CUSHION LEVER ROD
ROD, REAR CUSHION LEVER

(14) 62626-33D00-000

CENTRE SPACER
SPACER, ROD

(15) 62621-33D00-000

CENTRE BOLT
BOLT, ROD

(16) 08319-3112A-000

NUT

(17) 62100-33E00-000

REAR SHOCK ABSORBER ASSY
ABSORBER ASSY, REAR SHOCK

(18) 09103-10101-000

BOLT
BOLT, UPPER (10X54)

(19) 08319-31107-000

NUT

(20) 09103-10049-000

BOLT
BOLT, LOWER (10X44)

(21) 62993-33E00-000

BRACKET
BRACKET, ABSORBER

(22) 62994-33E00-000

BRACKET SPACER
SPACER, BRACKET

(23) 08319-3116A-000

NUT

	Part number	Description	Qty
# 1	62600-33880-000 62600-33892-000 6260033880000	LEVER SET, RR CUSHION LEVER SET, REAR CUSHION	£316,26
# 2	09263-20073-000 09263-20121-000 0926320073000	ROLLER BEARING BEARING, FRONT (20X27X30)	£23,58
# 3	09263-17039-000 09263-17058-000 0926317039000	BEARING BEARING, CENTER (17X24X20)	£21,98
# 4	09263-17034-000 09263-17057-000 0926317034000	ROLLER BEARING BEARING, REAR (17X24X26)	£28,40
# 5	62684-12C00-000 6268412C00000 6268412C00000	SPACER SPACER, FRONT	£8,50
# 6	08211-12301-000 0821112301000 0821112301000	THRUST WASHER WASHER	£3,40

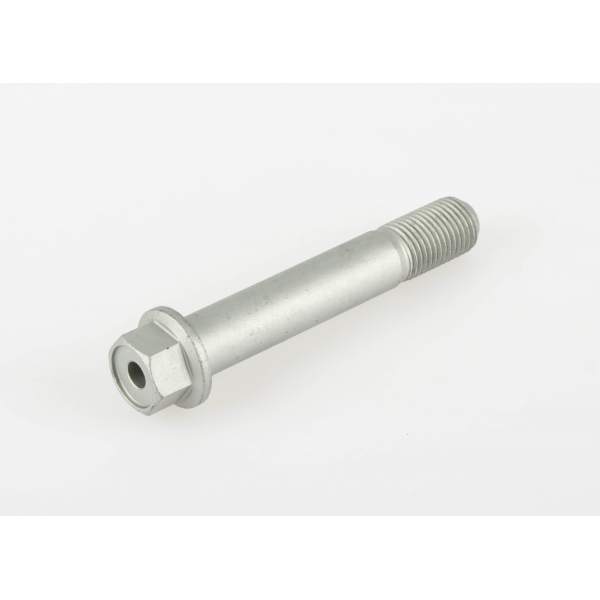

# 7	62658-33E00-000 6265833E00000 6265833E00000	FRONT BOLT BOLT, FRONT	Not available	£0,00
# 8	08319-31128-000 08319-3112A-000 0831931128000	NUT	£2,00
# 9	62626-33D00-000 6262633D00000 6262633D00000	CENTRE SPACER SPACER, CENTER	£11,94
# 10	62621-33D00-000 6262133D00000 6262133D00000	CENTRE BOLT BOLT, CENTER	£17,94
# 11	08319-31128-000 08319-3112A-000 0831931128000	NUT	£2,00
# 12	62684-40A10-000 6268440A10000 6268440A10000	SPACER SPACER, REAR	£20,14
# 13	62641-33E00-000 6264133E00000 6264133E00000	REAR CUSHION LEVER ROD ROD, REAR CUSHION LEVER	Not available	£0,00
# 14	62626-33D00-000 6262633D00000 6262633D00000	CENTRE SPACER SPACER, ROD	£11,94
# 15	62621-33D00-000 6262133D00000 6262133D00000	CENTRE BOLT BOLT, ROD	£17,94
# 16	08319-31128-000 08319-3112A-000 0831931128000	NUT	£2,00
# 17	62100-33E00-000 6210033E00000 6210033E00000	REAR SHOCK ABSORBER ASSY ABSORBER ASSY, REAR SHOCK	Not available	£0,00
# 18	09103-10101-000 0910310101000 0910310101000	BOLT BOLT, UPPER (10X54)	£5,00
# 19	08319-31107-000 0831931107000 0831931107000	NUT	£3,95
# 20	09103-10049-000 0910310049000 0910310049000	BOLT BOLT, LOWER (10X44)	£9,61
# 21	62993-33E00-000 6299333E00000 6299333E00000	BRACKET BRACKET, ABSORBER	Not available	£0,00
# 22	62994-33E00-000 6299433E00000 6299433E00000	BRACKET SPACER SPACER, BRACKET	Not available	£0,00
# 23	08319-31168-000 08319-3116A-000 0831931168000	NUT	£23,53

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
