INDICATORS (MODEL M / N / P) REFER TO FIG.26A(E-11) FOR MODEL R

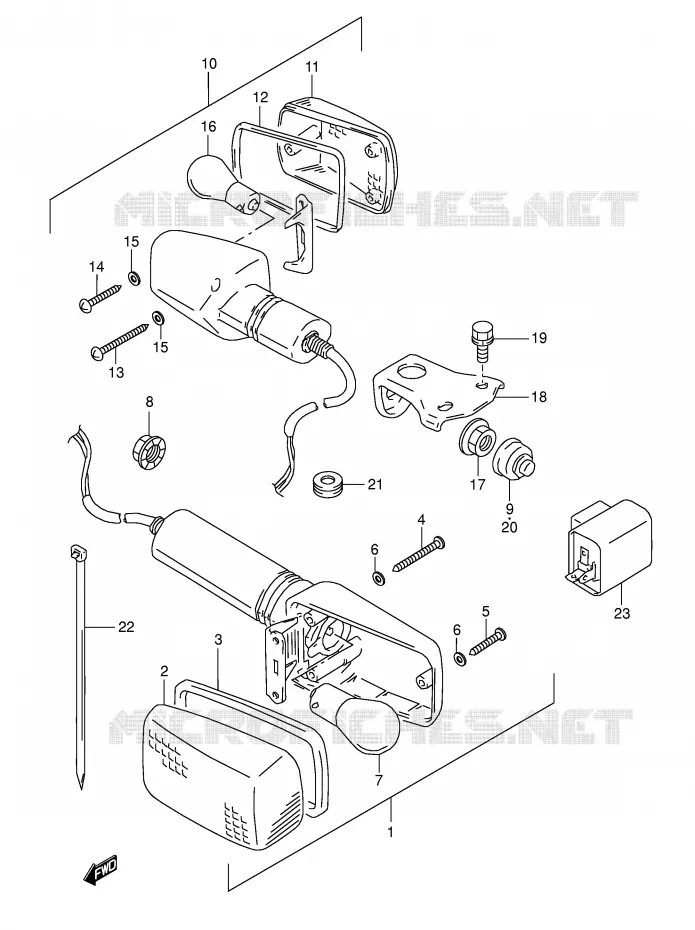

INDICATORS (MODEL R) FOR SUZUKI DR 800 1996

INDICATORS (MODEL S) REFER TO FIG.26C(E-13) FOR MODEL T

Item numbers

FR. TURN SIGNAL LAMP ASSY.
LAMP ASSY, FRONT TURN SIGNAL

35601-29E30-000 3560129E30000

£91,10

Unit Price Incl. Tax

FRONT TURN SIGNAL LAMP ASSY
LAMP ASSY, FRONT TURN SIGNAL

35601-29EC0-000 3560129EC0000

£117,52

Unit Price Incl. Tax

TURN SIGNAL LENS
LENS, FRONT TURN SIGNAL

35612-17C20-000 3561217C20000

£21,28

Unit Price Incl. Tax

LENS GASKET
GASKET

35613-27A00-000 3561327A00000

£9,60

Unit Price Incl. Tax

TAPPING SCREW
SCREW

35623-27A00-000 3562327A00000

£3,04

Unit Price Incl. Tax

SCREW

35725-40511-000 3572540511000

£3,54

Unit Price Incl. Tax

GASKET

35627-27A02-000 3562727A02000

£3,95

Unit Price Incl. Tax

BULB (12V, 21W)

09471-12045-000 0947112045000

£8,23

Unit Price Incl. Tax

08316-20103-000
NUT

08316-20103-000 0831620103000

Not available

COVER
CAP

35698-01480-000 3569801480000

£10,68

Unit Price Incl. Tax

35603-29E60-000
LAMP ASSY, REAR TURN SIGNAL LH

35603-29E60-000 3560329E60000

Not available

TURN SIGNAL LENS
LENS, REAR TURN SIGNAL

35652-17C20-000 3565217C20000

£21,74

Unit Price Incl. Tax

LENS GASKET
GASKET

35613-27A00-000 3561327A00000

£9,60

Unit Price Incl. Tax

TAPPING SCREW
SCREW

35623-27A00-000 3562327A00000

£3,04

Unit Price Incl. Tax

SCREW

35725-40511-000 3572540511000

£3,54

Unit Price Incl. Tax

GASKET

35627-27A02-000 3562727A02000

£3,95

Unit Price Incl. Tax

BULB (12V, 21W)

09471-12045-000 0947112045000

£8,23

Unit Price Incl. Tax

08316-20103-000
NUT

08316-20103-000 0831620103000

Not available

BRACKET, RR TURNSIGNAL
BRACKET, REAR TURN SIGNAL

35621-31D00-000 3562131D00000

Not available

01570-06103-000
BOLT, BRACKET

01570-06103-000 0157006103000

Not available

COVER
CAP

35698-01480-000 3569801480000

£10,68

Unit Price Incl. Tax

GROMMET
GROMMET, LEAD WIRE

09308-05015-000 0930805015000

£2,59

Unit Price Incl. Tax

09404-06402-000
CLAMP (L:60) REFER TO FIG.6A (C-4) FOR MODE

09404-06402-000 0940406402000

Not available

TURN SIGNAL RELAY
RELAY, TURN SIGNAL

38610-45D01-000 3861045D01000

£112,80

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the INDICATORS (MODEL R) of your Suzuki DR 800 S of DR. Let us know if you have any questions.
