TRANSMISSION

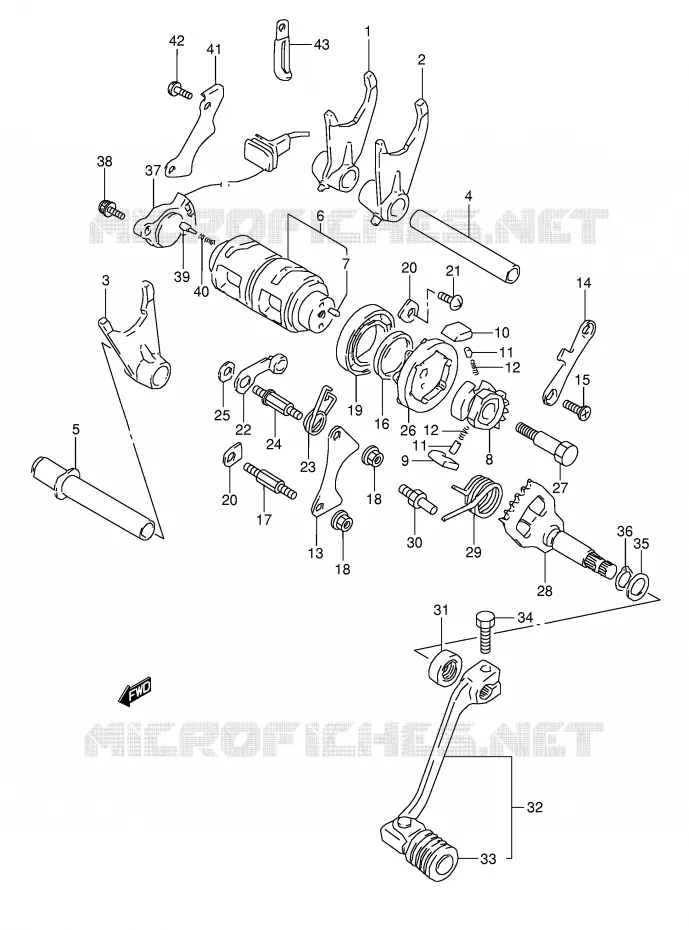

GEAR SHIFTING ASSY FOR SUZUKI DR 800 1996

FUEL COCK

Item numbers

G-SHIFTING FORK
FORK, GEAR SHIFTING NO.1

25211-44B00-000 2521144B00000

Not available

G-SHIFTING FORK
FORK, GEAR SHIFTING NO.2

25221-44B00-000 2522144B00000

Not available

FORK, GEAR SHIFTING NO.3

25231-44B00-000 2523144B00000

Not available

SHAFT GEAR SHIFT FORK NO 2
SHAFT, FORK NO.1 (L:92.5)

25411-44B00-000 2541144B00000

£52,84

Unit Price Incl. Tax

25421-44B00-000
SHAFT, FORK NO.2

25421-44B00-000 2542144B00000

Not available

REORDER ROBINSONS
SHAFT, FORK NO.2

25421-44B01-000 2542144B01000

Not available

CAM, GEAR SHIFT DR750S DR800S
CAM, GEAR SHIFTING

25310-44B00-000 2531044B00000

Not available

04221-04089-000 0422104089000

£2,21

Unit Price Incl. Tax

25322-31301-000
GEAR, GEAR SHIFT CAM DRIVEN

25322-31301-000 2532231301000

Not available

GEAR SHIFT PAWL
PAWL, NO.1

25323-34201-000 2532334201000

£7,27

Unit Price Incl. Tax

GEAR SHIFTING PAWL
PAWL, NO.2

25324-34201-000 2532434201000

£7,27

Unit Price Incl. Tax

09261-05003-000 0926105003000

£3,04

Unit Price Incl. Tax

SPRING

09440-04003-000 0944004003000

£3,04

Unit Price Incl. Tax

GEAR SHIFT POLE LIFTER
LIFTER, PAWL

25331-38A00-000 2533138A00000

£14,28

Unit Price Incl. Tax

GEAR SHIFT CAM GUIDE
GUIDE, CAM

25341-38A00-000 2534138A00000

£18,54

Unit Price Incl. Tax

02122-06123-000
SCREW

02122-06123-000 0212206123000

Not available

02122-06128-000
6 X 12 CROSS SCREW

02122-06128-000 0212206128000

Not available

WASHER

09160-25059-000 0916025059000

£10,85

Unit Price Incl. Tax

25332-38A00-000
BOSS

25332-38A00-000 2533238A00000

Not available

08316-10063-000
NUT

08316-10063-000 0831610063000

Not available

09159-06017-000
NUT

09159-06017-000 0915906017000

Not available

BEARING (25X47X8)

09262-25006-000 0926225006000

£37,91

Unit Price Incl. Tax

09262-25002-000
BEARING (25X47X8)

09262-25002-000 0926225002000

Not available

RETAINER, COUNTER SHAFT
RETAINER, SHIFT CAM RH BEARING

24741-20A10-000 2474120A10000

£0,89

Unit Price Incl. Tax

BEARING RETAINER
RETAINER, BEARING

24741-21A00-000 2474121A00000

£2,71

Unit Price Incl. Tax

02112-06123-000
SCREW

02112-06123-000 0211206123000

Not available

02112-06128-000
.6 X 12 CROSS SCREW

02112-06128-000 0211206128000

Not available

GEAR SHIFT CAM STOPPER
STOPPER, CAM

25350-24B00-000 2535024B00000

£23,48

Unit Price Incl. Tax

REORDER ROBINSONS
SPRING

09448-17021-000 0944817021000

£9,59

Unit Price Incl. Tax

SUPPORT

25356-12C00-000 2535612C00000

£30,25

Unit Price Incl. Tax

WASHER

08211-06141-000 0821106141000

£4,15

Unit Price Incl. Tax

PLATE COMP GEAR SHIFT CAM
PLATE, STOPPER

25380-38A02-000 2538038A02000

£23,06

Unit Price Incl. Tax

25312-38A00-000 2531238A00000

£13,54

Unit Price Incl. Tax

REORDER ROBINSONS
SHAFT, GEAR SHIFTING

25510-44B00-000 2551044B00000

Not available

SPRING

09444-26013-000 0944426013000

£6,46

Unit Price Incl. Tax

STOPPER GEAR SHIFT ARM
STOPPER, ARM

25671-36A00-000 2567136A00000

£8,17

Unit Price Incl. Tax

OIL SEAL

09285-12002-000 0928512002000

£3,01

Unit Price Incl. Tax

REORDER ROBINSONS
LEVER ASSY, GEAR SHIFTING

25600-31D00-000 2560031D00000

Not available

RUBBER
COVER

25652-03D00-000 2565203D00000

£10,60

Unit Price Incl. Tax

01107-06205-000
BOLT, UPPER

01107-06205-000 0110706205000

Not available

01500-06203-000
BOLT

01500-06203-000 0150006203000

Not available

WASHER THRUST
WASHER (12.5X20X1)

08212-12201-000 0821212201000

£3,26

Unit Price Incl. Tax

08331-31126-000
CIRCLIP

08331-31126-000 0833131126000

Not available

REORDER ROBINSONS
BODY, SWITCH

37720-44B00-000 3772044B00000

Not available

02112-75163-000
SCREW

02112-75163-000 0211275163000

Not available

02112-75168-000
SCREW, THROTTLE CABLE

02112-75168-000 0211275168000

Not available

PIN
CONTACT, SWITCH

09209-05011-000 0920905011000

£2,71

Unit Price Incl. Tax

SPRING

09440-04010-000 0944004010000

£3,04

Unit Price Incl. Tax

CLAMP, LEAD WIRE

37721-44B00-000 3772144B00000

Not available

02112-36103-000
SCREW

02112-36103-000 0211236103000

Not available

02112-36108-000
SCREW

02112-36108-000 0211236108000

Not available

CLAMP (L 80)
CLAMP

09404-06429-000 0940406429000

£4,36

Unit Price Incl. Tax

09404-06402-000
CLAMP (L:60) REFER TO FIG.6A (C-4) FOR MODE

09404-06402-000 0940406402000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki DR 800 S of DR. Let us know if you have any questions.
