SEAT (MODEL R) COLOR : M18 = 0JW(WHITE), 1LE(BLUE)

SEAT (MODEL S / T / V / W) FOR SUZUKI GSX-R 1100 1996

STARTER MOTOR

Item numbers

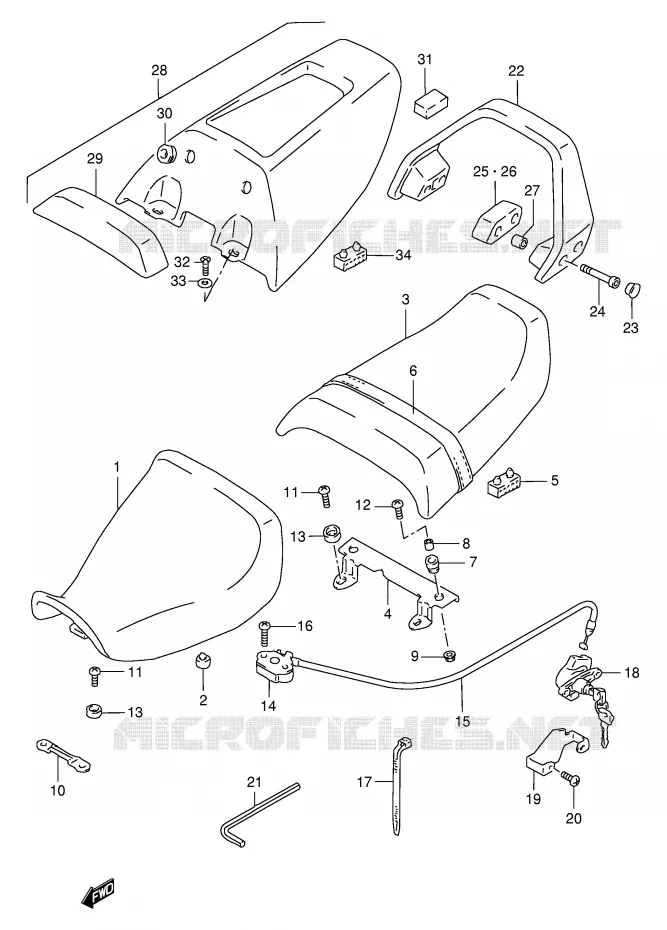

SEAT (MODEL S/T/V/W) Suzuki MOTO 1100 GSX-R 1996 GSX-R1100WT(E2)
1
2
3
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
25
26
27
28
28
28
28
29
30
31
32
33
34
1
SUZUKI PART
SEAT ASSY (BLACK)

45100-46E00-58R   4510046E0058R

4510046E0058R
Not available
2
CUSHION
CUSHION

09321-10011-000   0932110011000

0932110011000

Unit Price Incl. Tax

3
PILLION SEAT ASSY BLACK
SEAT ASSY, PILLION (BLACK) (NO SEAT BAND)

45300-46E00-58R   4530046E0058R

4530046E0058R
Not available
3
SEAT, PILLION
SEAT ASSY, PILLION (BLACK)

45300-46E10-58R   4530046E1058R

4530046E1058R
Not available
4
REORDER ROBINSONS
PLATE, SEAT LOCK

45321-46E00-000   4532146E00000

4532146E00000
Not available
5
CUSHION
CUSHION

45149-31300-000   4514931300000

4514931300000

Unit Price Incl. Tax

6
GRIP
BAND, SEAT GRIP (BLACK)

45180-46E00-58R   4518046E0058R

4518046E0058R
Not available
7
CUSHION

45215-06B00-000   4521506B00000

4521506B00000

Unit Price Incl. Tax

8
SPACER

45216-06B00-000   4521606B00000

4521606B00000

Unit Price Incl. Tax

9
08316-10063-000
NUT

08316-10063-000   0831610063000

0831610063000
Not available
10
PLATE
PLATE, SEAT FRONT

45119-17E00-000   4511917E00000

4511917E00000

Unit Price Incl. Tax

11
09139-06081-000
DISCONTINUED

09139-06081-000   0913906081000

0913906081000
Not available
12
SCREW<br />SCREW, PILLION SEAT (6X12)
SCREW
SCREW, PILLION SEAT (6X12)

09139-06027-000   0913906027000

0913906027000

Unit Price Incl. Tax

13
CUSHION<br />CUSHION, SEAT SUPPORT
CUSHION
CUSHION, SEAT SUPPORT

45149-04A00-000   4514904A00000

4514904A00000

Unit Price Incl. Tax

14
REORDER ROBINSONS
BRACKET, SEAT SUPPORT REAR

45220-46E00-000   4522046E00000

4522046E00000
Not available
15
REORDER ROBINSONS
CABLE, SEAT LOCK

45280-46E00-000   4528046E00000

4528046E00000
Not available
16
02122-06253-000
SCREW

02122-06253-000   0212206253000

0212206253000
Not available
17
09407-18403-000
CLAMP, BREATHER TUBE (L:165)

09407-18403-000   0940718403000

0940718403000
Not available
18
95700-12852-000
LOCK SET, SEAT

95700-12852-000   9570012852000

9570012852000
Not available
19
SEAT LOCK GUARD PLATE
PLATE, SEAT LOCK GUARD

45289-45D01-000   4528945D01000

4528945D01000
Not available
20
SCREW<br />SCREW (6X12)
SCREW
SCREW (6X12)

09139-06075-000   0913906075000

0913906075000

Unit Price Incl. Tax

21
HEXAGON 4 SPANNER
SPANNER, HEXAGON 4

09816-00103-000   0981600103000

0981600103000

Unit Price Incl. Tax

22
PILLION RIDER HANDLE (GREY)
HANDLE, PILLION RIDER (GRAY)

46211-46E00-17U   4621146E0017U

4621146E0017U

Unit Price Incl. Tax

22
46211-46E00-0JW
HANDLE, PILLION RIDER (WHITE)

46211-46E00-0JW   4621146E000JW

4621146E000JW
Not available
22
PILLION RIDER HANDLE BLACK
HANDLE, PILLION RIDER (BLACK)

46211-46E00-33J   4621146E0033J

4621146E0033J
Not available
22
HANDLE, PILLION RIDER (GRAY)

46211-46E00-35W   4621146E0035W

4621146E0035W
Not available
23
CAP
CAP

09250-06004-000   0925006004000

0925006004000

Unit Price Incl. Tax

24
07130-08653-000
BOLT

07130-08653-000   0713008653000

0713008653000
Not available
25
RH CUSHION
CUSHION, RH

46238-46E00-000   4623846E00000

4623846E00000
Not available
26
LH CUSHION
CUSHION, LH

46239-46E00-000   4623946E00000

4623946E00000
Not available
27
09180-08180-000
SPACER

09180-08180-000   0918008180000

0918008180000
Not available
28
DISCONTINUED

45500-46810-0JW   45500468100JW

45500468100JW
Not available
28
DISCONTINUED

45500-46810-17U   455004681017U

455004681017U
Not available
28
DISCONTINUED

45500-46810-33J   455004681033J

455004681033J
Not available
28
BOX SET, SEAT TAIL (GRAY)

45500-46810-35W   455004681035W

455004681035W
Not available
29
REORDER ROBINSONS
BACKREST, SEAT (BLACK)

46220-46E00-58R   4622046E0058R

4622046E0058R
Not available
30
CUSHION
CUSHION

09320-12031-000   0932012031000

0932012031000

Unit Price Incl. Tax

31
PROTECTOR

45591-12C00-000   4559112C00000

4559112C00000
Not available
32
SCREW
BOLT

09139-06067-000   0913906067000

0913906067000
Not available
33
WASHER
WASHER

09160-06066-000   0916006066000

0916006066000

Unit Price Incl. Tax

34
CUSHION
CUSHION

45149-31300-000   4514931300000

4514931300000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
