Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WATER PUMP

RADIATOR FOR SUZUKI GSX-R 1100 1996

RADIATOR HOSE - EXPANSION TANK (MODEL P / R) REFER TO FIG.18A(1-E-10) FOR MODEL S/T/V/W

Item numbers

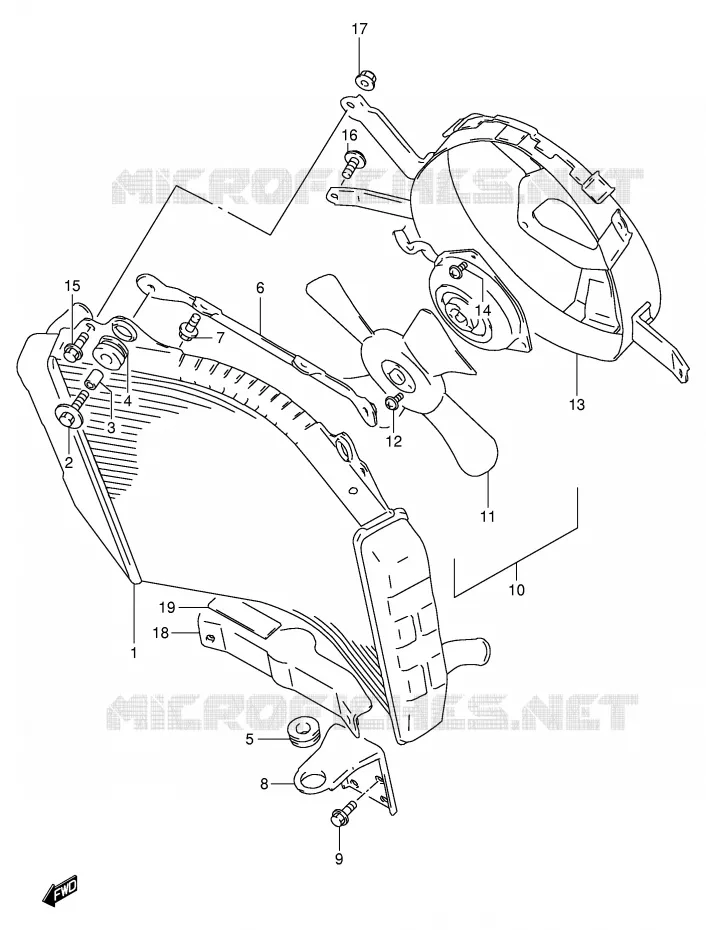

RADIATOR Suzuki MOTO 1100 GSX-R 1996 GSX-R1100WT(E2)
1
2
3
4
5
6
7
7
8
9
9
10
10
11
12
13
14
15
15
16
16
17
17
18
19
19
1
WATER RADIATOR ASSY
RADIATOR ASSY, WATER

17710-46E00-000   1771046E00000

1771046E00000
Not available
2
BOLT (6X25)
BOLT (6X25)

09116-06147-000   0911606147000

0911606147000

Unit Price Incl. Tax

3
SPACER<br />SPACER (6.5X10.5X12)
SPACER
SPACER (6.5X10.5X12)

09180-07004-000   0918007004000

0918007004000

Unit Price Incl. Tax

4
CUSHION
CUSHION, RADIATOR UPPER

17787-19A00-000   1778719A00000

1778719A00000

Unit Price Incl. Tax

5
CUSHION
CUSHION, RADIATOR LOWER

09320-12053-000   0932012053000

0932012053000

Unit Price Incl. Tax

6
BRACKET, RADIATOR UPPER

17740-17E00-000   1774017E00000

1774017E00000
Not available
7
01177-06125-000
BOLT

01177-06125-000   0117706125000

0117706125000
Not available
7
01580-06163-000
BOLT

01580-06163-000   0158006163000

0158006163000
Not available
8
BRACKET, RADIATOR LOWER

17750-46E00-000   1775046E00000

1775046E00000
Not available
9
01174-06165-000
BOLT, REAR FENDER FRONT

01174-06165-000   0117406165000

0117406165000
Not available
9
01580-06203-000
BOLT

01580-06203-000   0158006203000

0158006203000
Not available
10
17800-46E01-000
DISCONTINUED

17800-46E01-000   1780046E01000

1780046E01000
Not available
10
RADIATOR FAN ASSY
FAN ASSY, RADIATOR

17800-46E02-000   1780046E02000

1780046E02000
Not available
11
FAN ASSY

17820-17E00-000   1782017E00000

1782017E00000

Unit Price Incl. Tax

12
02112-04063-000
SCREW

02112-04063-000   0211204063000

0211204063000
Not available
13
FAN SHROUD ASSY
SHROUD ASSY, FAN

17770-46E00-000   1777046E00000

1777046E00000
Not available
14
02142-05083-000
SCREW

02142-05083-000   0214205083000

0214205083000
Not available
15
01517-06125-000
.BOLT, OIL GALLERY

01517-06125-000   0151706125000

0151706125000
Not available
15
01550-06123-000
BOLT

01550-06123-000   0155006123000

0155006123000
Not available
16
01517-06108-000
.PLUG, OIL GALLERY

01517-06108-000   0151706108000

0151706108000
Not available
16
01550-06103-000
BOLT

01550-06103-000   0155006103000

0155006103000
Not available
17
08316-10063-000
NUT

08316-10063-000   0831610063000

0831610063000
Not available
17
08316-16064-000
NUT 6MM

08316-16064-000   0831616064000

0831616064000
Not available
18
BRACKET, RADIATOR LOWER NO.2

17760-46E00-000   1776046E00000

1776046E00000
Not available
19
CUSHION
CUSHION, RADIATOR LOWER

51553-15D40-000   5155315D40000

5155315D40000

Unit Price Incl. Tax

19
94476-17E00-000
CUSHION, CONDUCTION PIPE

94476-17E00-000   9447617E00000

9447617E00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
