Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

MUFFLER (MODEL P / R) REFER TO FIG.14A(1-E-3) FOR MODEL S/T/V/W

MUFFLER (MODEL S / T / V / W) FOR SUZUKI GSX-R 1100 1996

OIL COOLER

Item numbers

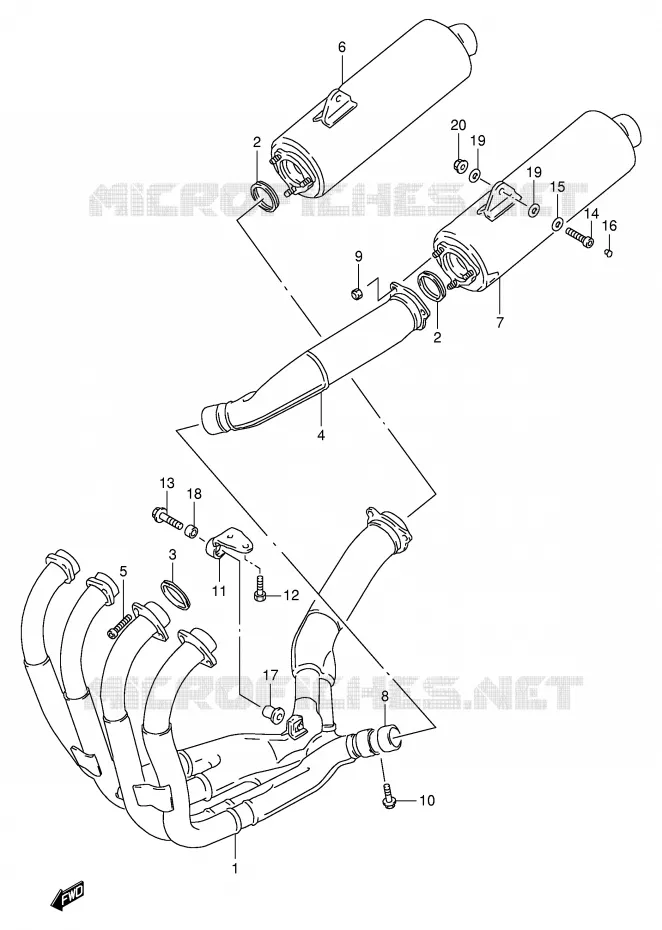

MUFFLER (MODEL S/T/V/W) Suzuki MOTO 1100 GSX-R 1996 GSX-R1100WT(E2)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
1
EXHAUST ASSY

14100-46E50-000   1410046E50000

1410046E50000
Not available
2
EXHAUST PIPE GASKET
GASKET, MUFFLER JOINT

14181-31E00-000   1418131E00000

1418131E00000
Not available
3
EXHAUST PIPE GASKET
GASKET, EXHAUST PIPE

14181-46E00-000   1418146E00000

1418146E00000
Not available
4
REORDER ROBINSONS
PIPE, JOINT LH

14240-46E50-000   1424046E50000

1424046E50000
Not available
5
07130-08253-000
BOLT

07130-08253-000   0713008253000

0713008253000
Not available
6
MUFFLER RH BODY
BODY, MUFFLER RH

14310-46E50-H01   1431046E50H01

1431046E50H01
Not available
7
MUFFLER LH BODY
BODY, MUFFLER LH

14340-46E50-H01   1434046E50H01

1434046E50H01
Not available
8
MUFFLER CONNECTOR<br />CONNECTOR, MUFFLER
MUFFLER CONNECTOR
CONNECTOR, MUFFLER

14771-46E00-000   1477146E00000

1477146E00000

Unit Price Incl. Tax

9
09159-08101-000
NUT

09159-08101-000   0915908101000

0915908101000
Not available
10
01550-08403-000
BOLT

01550-08403-000   0155008403000

0155008403000
Not available
11
REORDER ROBINSONS
DAMPER, MUFFLER SUPPORT CENTER

14770-46E50-000   1477046E50000

1477046E50000
Not available
12
09100-08240-000
BOLT (8X20)

09100-08240-000   0910008240000

0910008240000
Not available
13
09118-08068-000
BOLT (8X40)

09118-08068-000   0911808068000

0911808068000
Not available
14
REORDER ROBINSONS
BOLT

07130-10407-000   0713010407000

0713010407000

Unit Price Incl. Tax

15
09160-10127-000
WASHER

09160-10127-000   0916010127000

0916010127000
Not available
16
CAP
CAP

09250-08012-000   0925008012000

0925008012000

Unit Price Incl. Tax

17
SPACER<br />SPACER (8.6X12X18.5)
SPACER
SPACER (8.6X12X18.5)

09180-08157-000   0918008157000

0918008157000

Unit Price Incl. Tax

18
CUSHION

09320-12062-000   0932012062000

0932012062000

Unit Price Incl. Tax

19
09160-10505-000
WASHER (10.5X24X2.3)

09160-10505-000   0916010505000

0916010505000
Not available
20
08316-10103-000
NUT

08316-10103-000   0831610103000

0831610103000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
